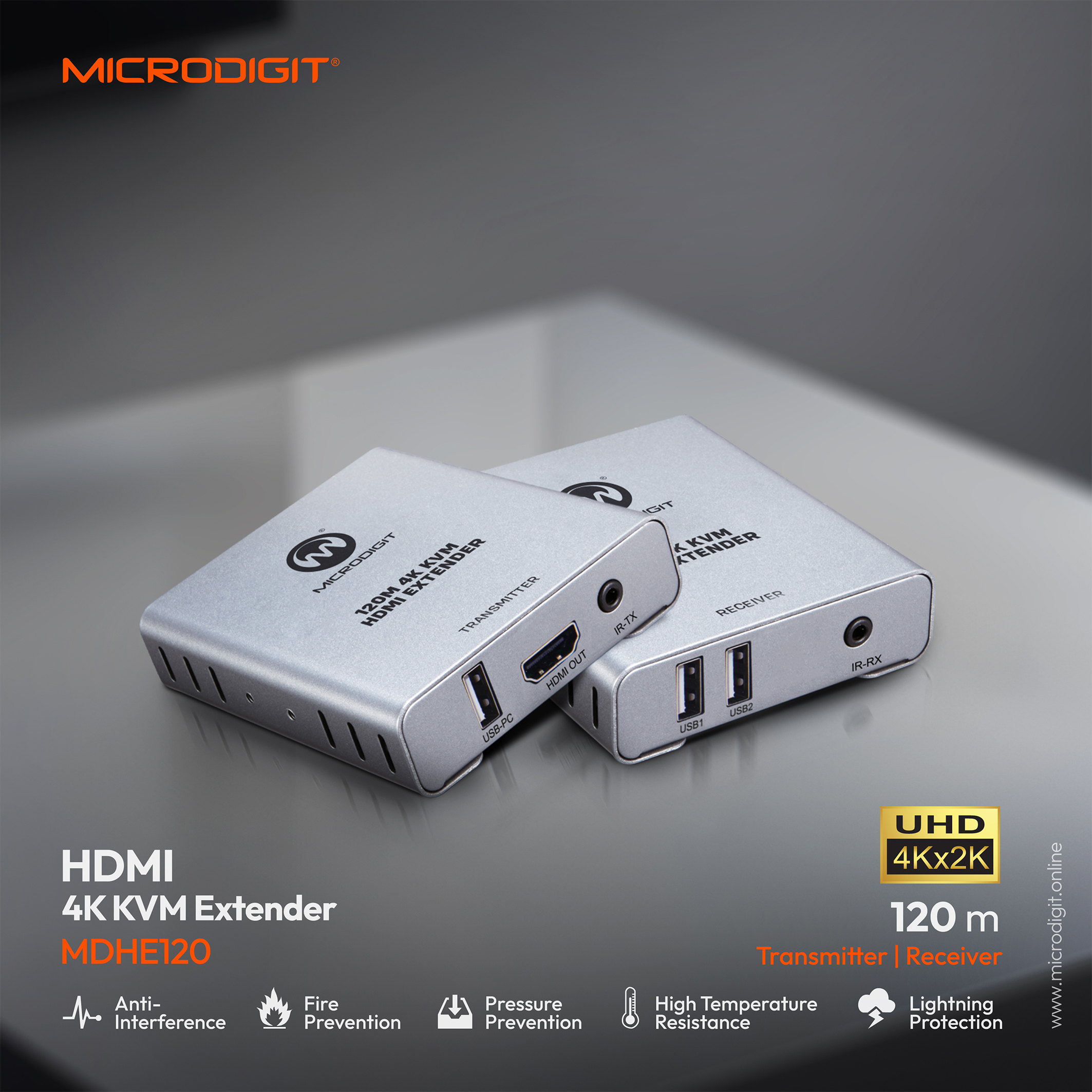

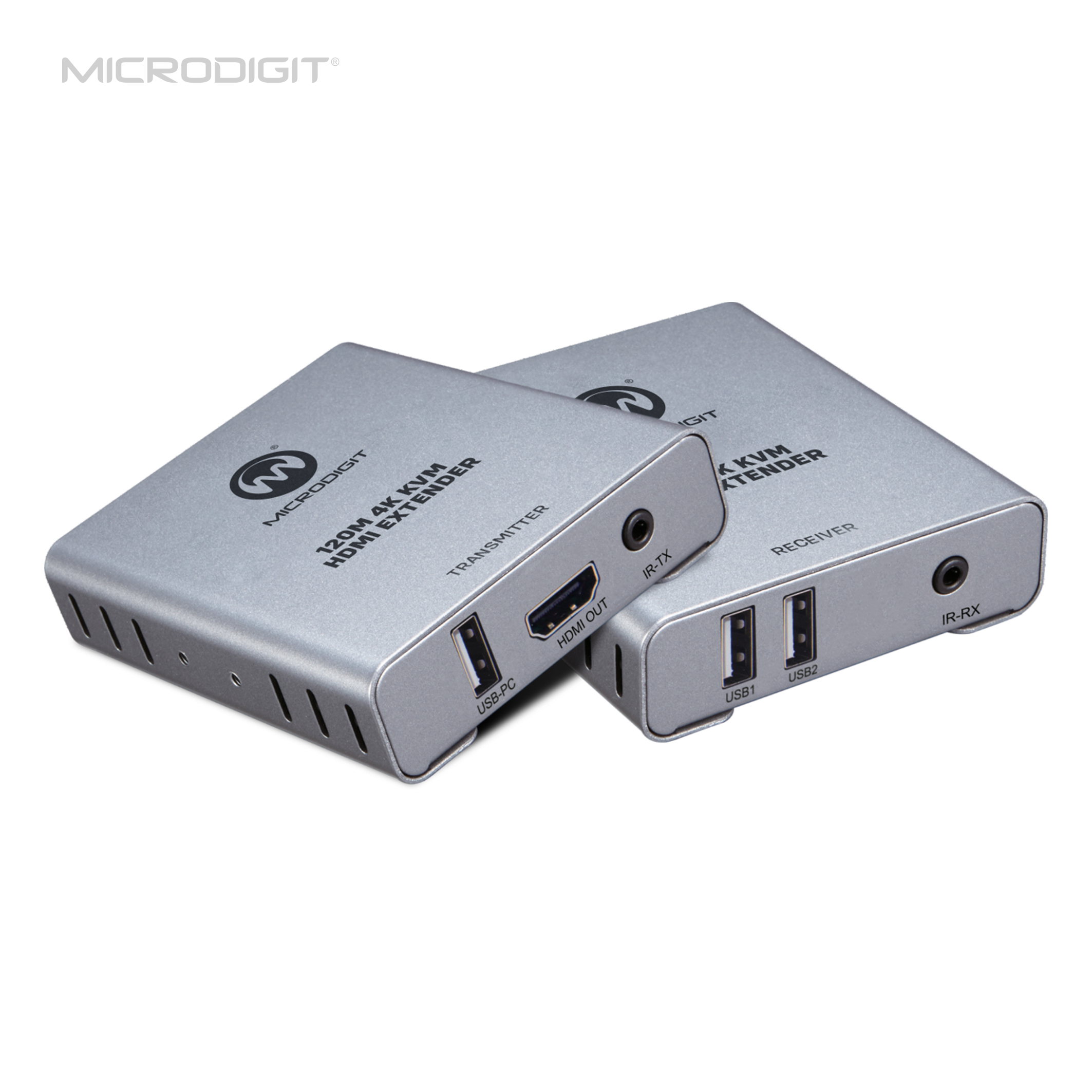

4K KVM Extender 120 Meter | MDHE120

• Length of CAT5e/CAT6 cable - Rx and TX : 120meters
• HDMI Input :4k/1O8Op/72Op/576p/576i/48Op/48Oi
• HDMI Output : 4k/1O8Op/72Op/576p/576i/48Op/48Oi
• Max bandwidth : 340Mbps
• Max baud rate : 3x3.4Gbps
• Input video signal :05to1.5 Volts p-p
• Output DDC signal : 5 Volts p-p(TTL)
• Input HDMI cable distance :≤10 meter AWG26HDMI standard cable
• Output HDMI cable distance : ≤10 meter AWG26 HDMI Standard cable
• TX Max working current : 350mA
• RX Max working current : 200mA
• Operating Temperature range (-15to+55°C)
• Operating Humidity range :5 to 90 %RH(No condensation)
• Dimension : 94x84x24 mm
• TX Weight : 220g
• RX Weight : 220g
• Both the TX and RX support 3.5MM left and right audio output.
• Low power consumption, low temperature and high safety.
• Support IR remote control.
• Support USBا Mouse and Keyboard extension.
• Support highest video resolution1080p/60Hz
• 120 meter  long distance transmission.

Display Device
A display device with a HDTV Female Connector.

Cable Inquire
Standard OFC Cat6/6A upto Max 12Om
