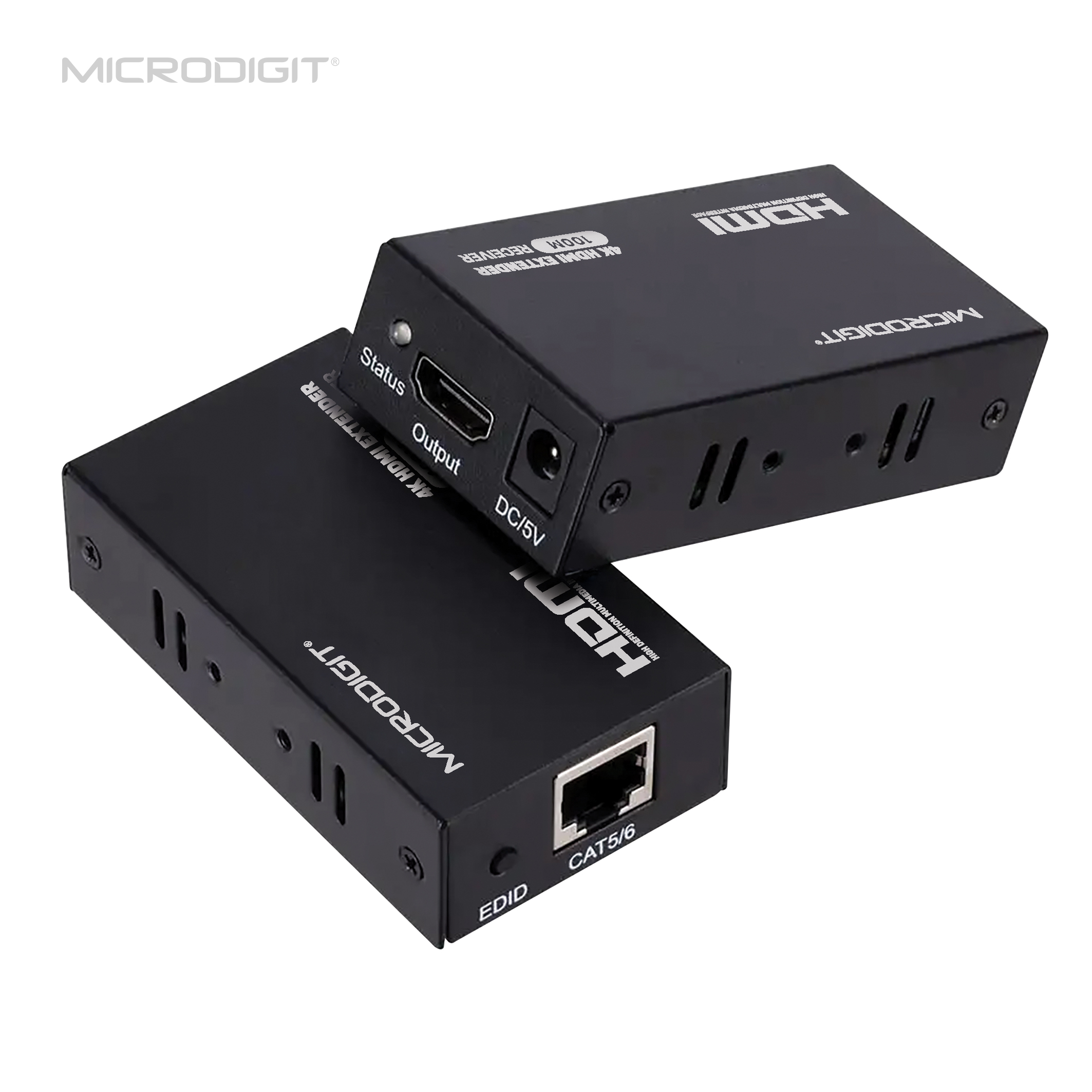

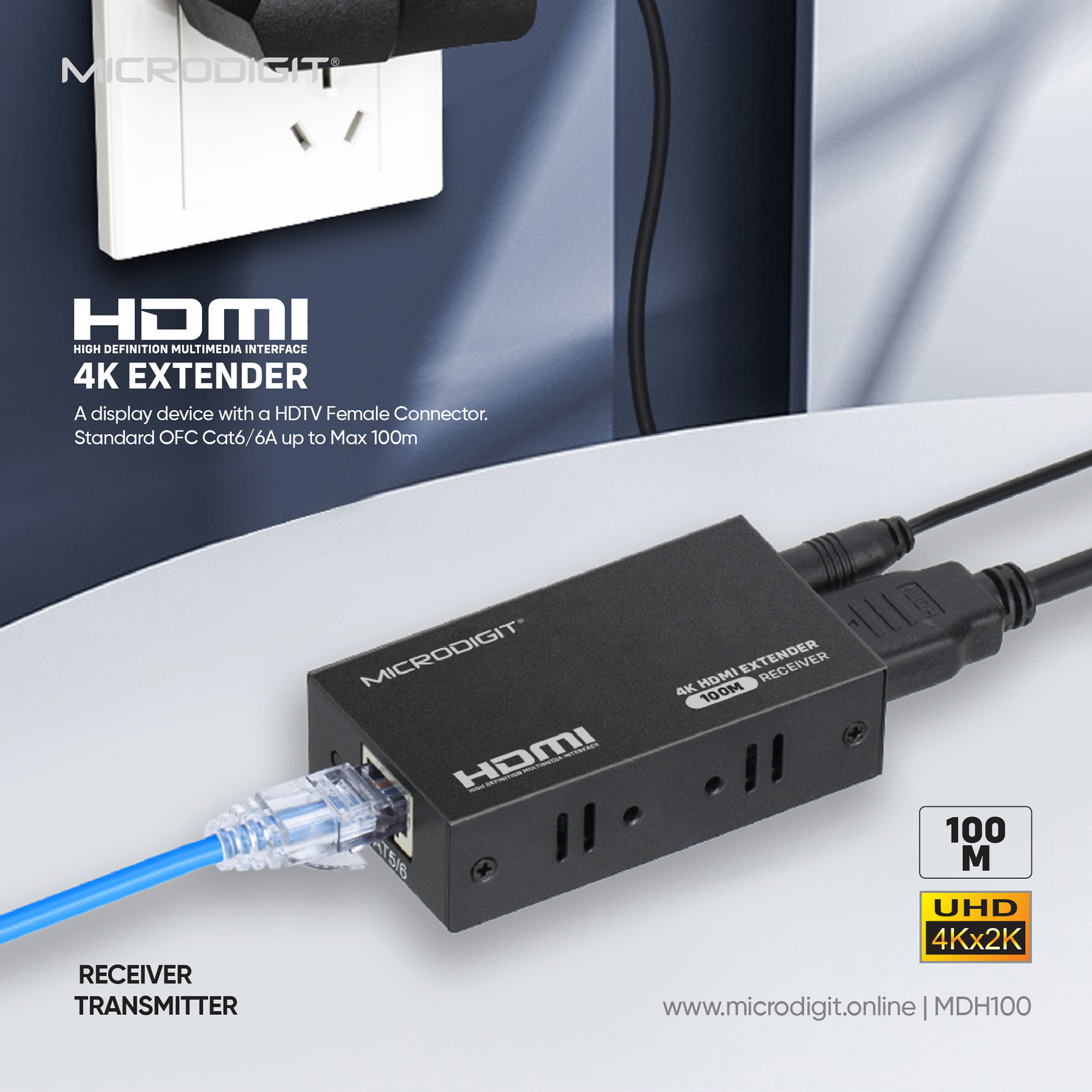

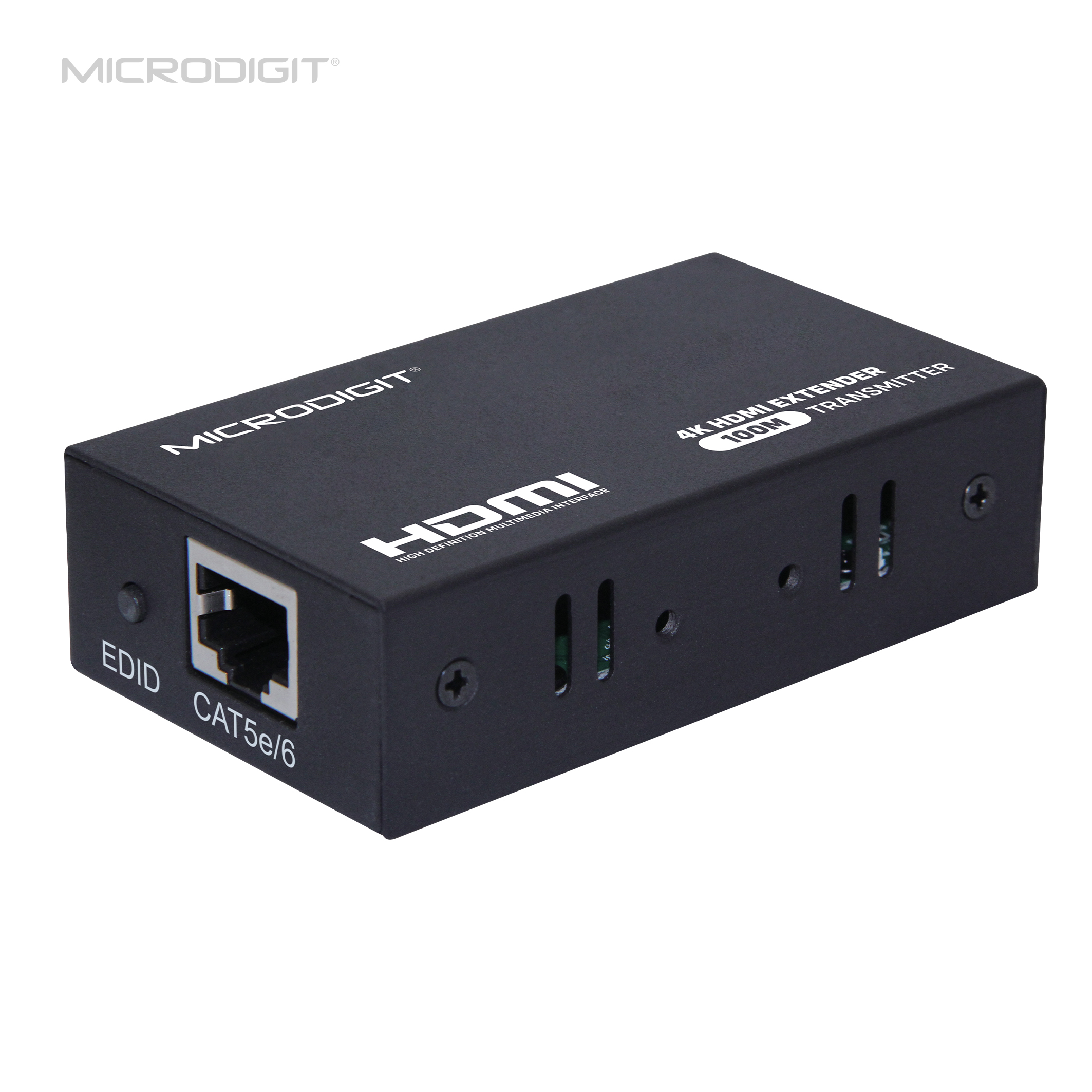

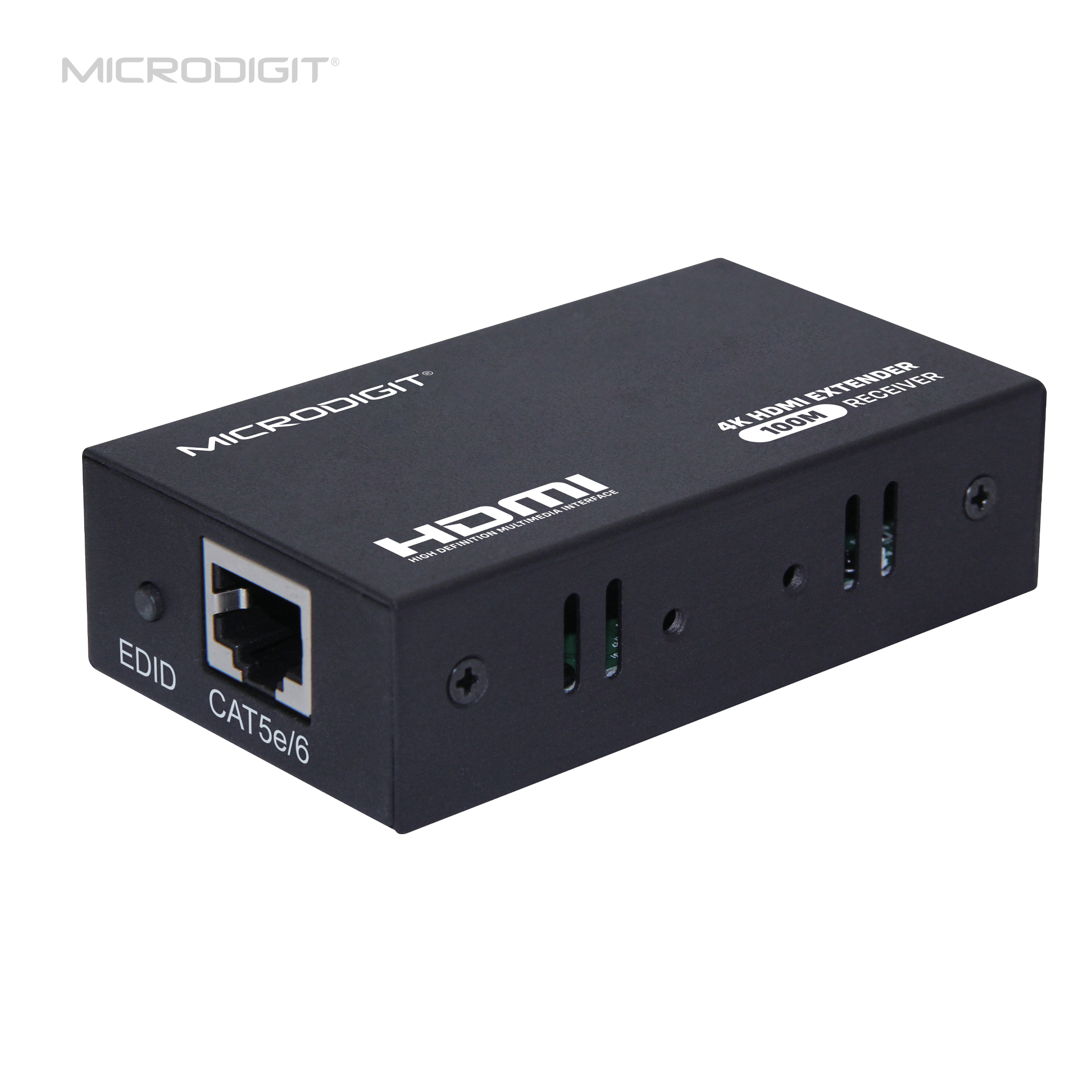

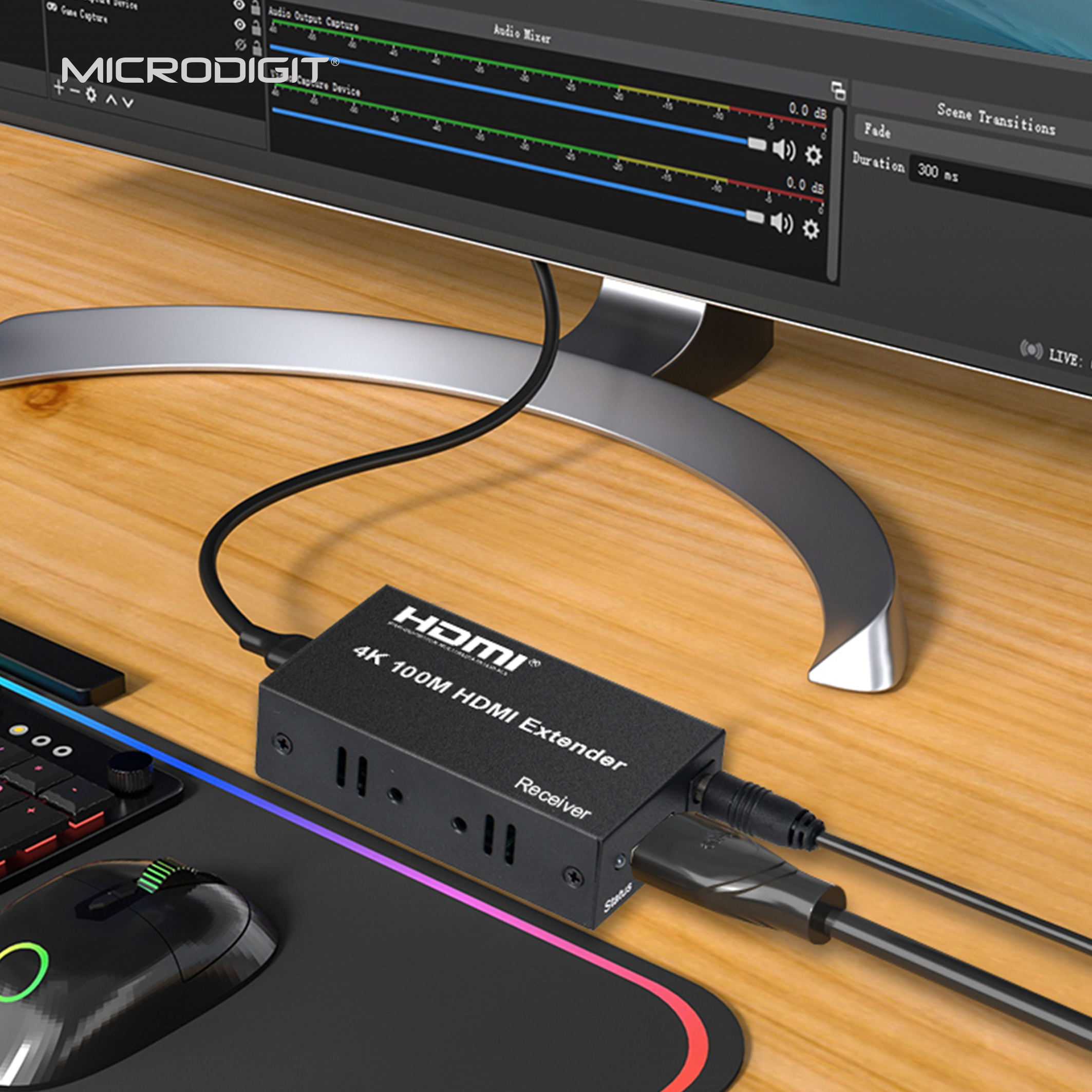

MICRODIGIT 4K Extender 100 Meter MDHE100
مزيد من المعلومات224.25 ر.س
264.50 ر.س
خصم 16%
+
احصل على نقاط ولاء مع هذا الشراء
المكافآترقم المنتج (sku)
CREMICMDHE100
الوزن
1.0 kg
مشاركة المنتج
وصف المنتج
- Support HDMI 1.4b
- Support highest video resolution 3840*2160p/Hz
- Support 3.4x3Gbps data rate and TMD Sclock up to 34OMHz
- Support 8/10/12 bit deep color
- Support AWG26 HDMI standard cable, input up to 10 meters output up to 10 metres
- Signal transmission: By using single cate or cat6 (recommended) cable instead of HDMI cable, it can extend the distance up to 100 meters between TX and RX.
- Need DC5V/1A power supply.
- Length of CAT5e/CAT6 cable between Rx and TX Up to 100 meters
- HDMI Input : 4K/1O8Op/72Op/576p/576i/48Op/48Oi
- HDMI Output : 24/5O/6Ofs/1O8Op/1O8Oi/72Op/576p/576i/48Op/48Oi
- Max bandwidth : 340MHZ
- Max baud rate : 3.4x3Gbps
- Input video signal : 0.5-1.5 ٧olts p-p
- Output DDC signal : 5Volts p-p (TTL)
- Input HDMI cable distance :≤10m AWG26 HDMI standard cable
- Output HDMI cable distance :≤10m AWG26 HDMI standard cable
- TX Max working current : 350mA
- RX Max working current : 200mA
- Power adapter format : AC100-220V(50HZ, 60HZ), Output: DC5V/1A
- Operating Temperature range : (-15 to +55°C)
- Operating Humidity range 5 to 90% RH (No Condensation)
- Dimension : 81X47x22 (mm)
- TX Weight : 101g
- RX Weight : 101g
